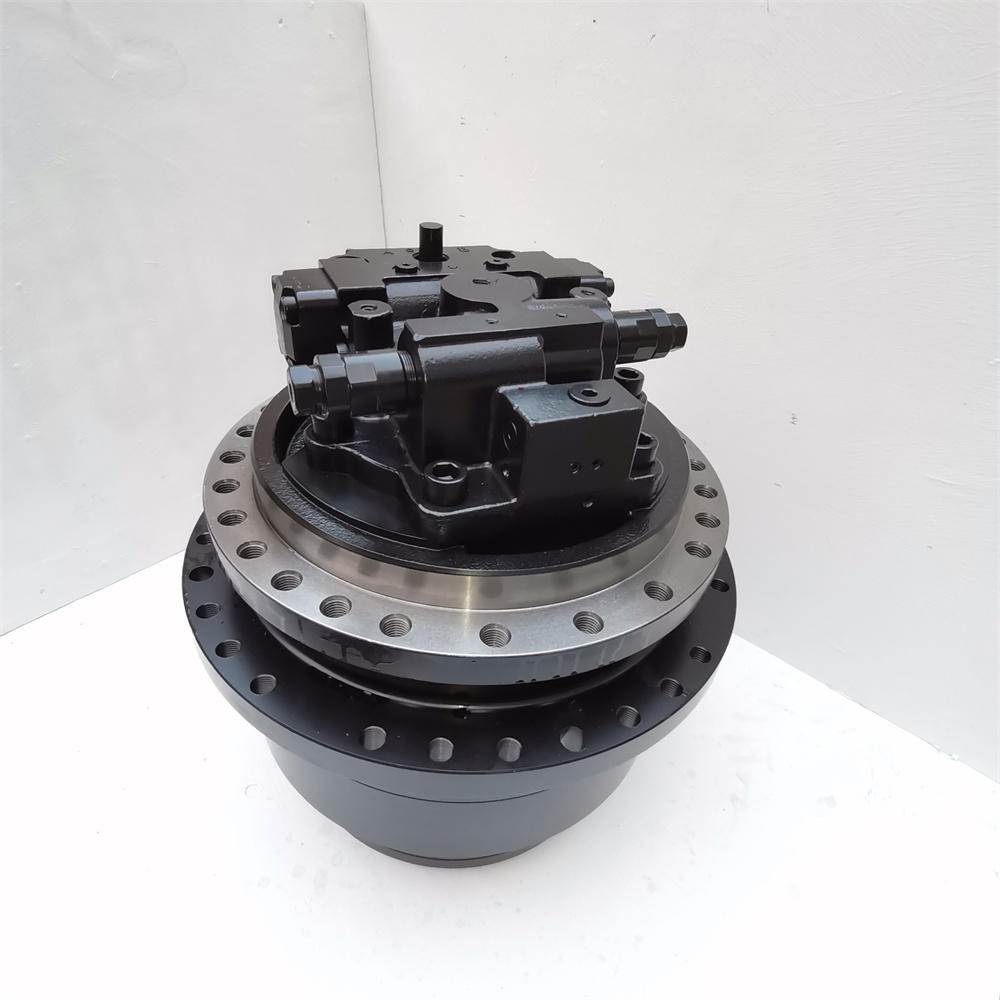

Doosan Excavator 722380 722530 TM70VC Excavator Travel Motor Repair for DX340 R375 EC350

Doosan excavator 722380 722530 TM70VC Excavator travel motor repair for DX340 R375 EC350

Product Specifications

Attribute	Value
Model	DX340 R375 EC350
Part number	722380 722530 TM70VC
Part name	Hyundai Hydraulic Travel Motor
Application	Excavator
Power Source	Hydraulic
After Warranty Service	Online Support
Color	According to customer requirement

List of Spare Parts

#	Part No	Part Name	Comment	Qty.
-	722380	TRAVEL MOTOR	170 kg	1
-	722530	TRAVEL MOTOR		1
*	720720-PH	CYLINDER ASS'Y		1
111	135279	CYLINDER BLOCK		1
131	135288	VALVE PLATE	1 kg	1
*	718808	PISTON & SHOE ASS'Y		9
121	136902	PISTON		1
122	136903	SHOE		1
*	720721-PH	VALVE CASING ASS'Y		1
303	135280	CASE, VALVE	31 kg	1
451	113715	PIN=PJR1014		1
502	718809	TILTING PISTON & SHOE ASS'Y		1
22	722349	SPOOL, COUNTER BALANCE		1
101	135286	DRIVE SHAFT		1
101	141948	SHAFT, DRIVE		1
102	233718	BEARING, ROLLER		1
103	234186	BEARING, NEEDLE		1
107	202610	RING, SNAP		1
113	135281	BUSH, SPHERICAL		1
114	134537	SPRING, CYLINDER		9
123	135287	PLATE, SET		1
201	136880	SWASH PLATE		1
272	135284	CASING, SHAFT		1
272	141964	SHAFT CASING		1
350	235886	VALVE, RELIEF		2
351	233745	VALVE, REDUCING		1
352	234343	COVER(REDUCING V/V)		1
361	135295	WASHER, COUNTER BALANCE		2
362	235028	SPRING, COUNTER BALANCE		2
364	135285	COVER, COUNTER BALANCE		2
365	201664	O-RING(SPOOL)		2
366	200689	BOLT, HEX SOCKET HEAD		8
401	205107	BOLT, HEX SOCKET HEAD		2
402	233602	BOLT, HEX SOCKET HEAD		4
435	202585	RING, SNAP		1
461	224308	PLUG		13
464	108843	PLUG, VP		2
472	232067	O-RING		1
485	201710	O-RING 1BP18		2
491	232065	OIL SEAL		1
504	135293	BALL, PIVOT		2
509	201710	O-RING 1BP18		1
531	135202	PLATE, CHECK VALVE		1
533	232059	SPRING TILTING S	4 kg	1
541	135296	SEAT 2A	9 kg	1
542	135297	STOPPER		1
543	200166	BALL, STEEL		1
545	135289	ORIFICE SCREW	1 kg	1
546	135301	ORIFICE SCREW	1 kg	1

After Sales Guarantee Service

Quick Response: Provide a 24-hour service hotline to promptly respond to customer needs and ensure quick resolution of issues.
Professional Maintenance: Equipped with a professional technical team, providing on-site service, and using original accessories to ensure equipment performance.
Regular Maintenance: Provide regular maintenance plans to extend equipment lifespan and improve work efficiency.
Technical Support: Provide operational training and technical consultation to help customers better use the equipment.
Warranty Commitment: Core components enjoy quality assurance services to ensure customer rights and worry free use.

We always aim for customer satisfaction and ensure efficient operation of equipment!
